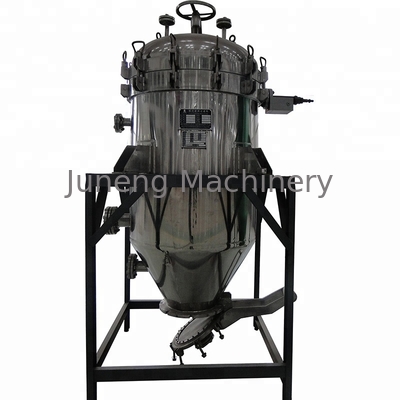

NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
| Plaats van herkomst | Jiangsu, China |
|---|---|
| Merknaam | Juneng |
| Min. bestelaantal | 1 set |
| Prijs | $7,760-8,000 / set |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Gewicht | 1000 kg | Filtratiegebied | 2-70 ㎡ |
|---|---|---|---|
| Het volume van de filtercake | 30-1600 L | Behandelingscapaciteit | 0,4-21 m³/h |
| Werkdruk | 0,1-0,4 MPA | Maximale druk | 0,5 MPa |
| Werktemperatuur | ≤ 150 °C | Machinevolume | 120-7200 L |
| Pakketmaat | 123*456*789 cm | Pakketgewicht | 1.2 T |
| Materiaal | Roestvrij staal | Bedrijfstype | volledig gesloten |
| Afvoer van residuen | Pneumatische klep | Filtratiemethode | Geactiveerde koolstof/bleekmiddel |
| Filterplaatlagen | Veelvoud | ||
| Markeren | vertical pressure leaf filter 10㎡ filtration area,vertical pressure leaf filter 150L cake volume,NYB vertical pressure leaf filter |
||
Productomschrijving
Oil Bleaching Pressure Leaf Filter Machine
| Attribute | Value |
|---|---|
| Condition | New |
| Weight (kg) | 1000 |
| Warranty | 1 Year |
Product Application
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

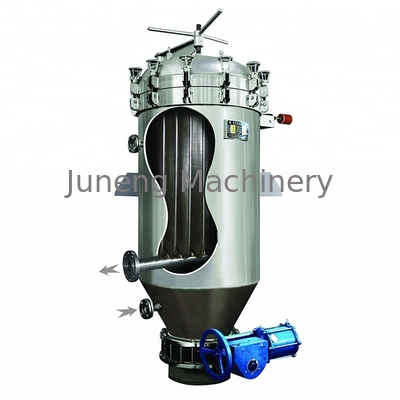

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor intensity
- Capable of activated carbon (carclazyte) filtering or bleaching filtering, completely replacing plate and frame filters

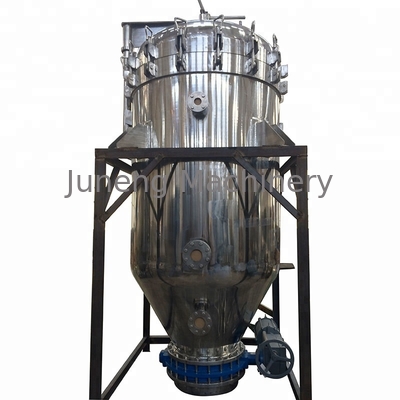

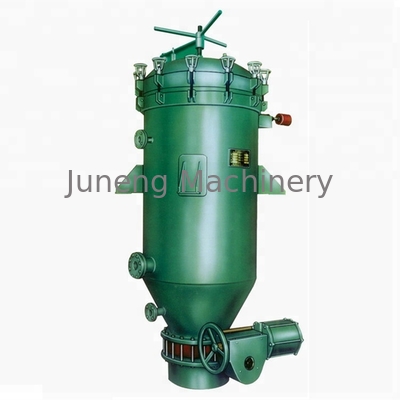

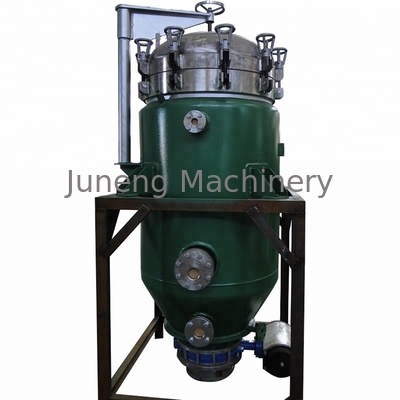

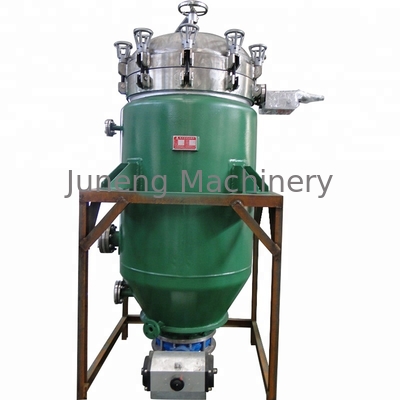

Detailed Images
Related Products
91.8% Response Rate
91.8% Response Rate
Certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing available
After-Sales Service
- Installation and operation training
- Engineers available for overseas machinery service
Packing & Delivery
Size: 123 (L) * 456 (W) * 789 (D)
Weight: 1.2 T
The normal package is wooden box. If exporting to European countries, the wooden box will be fumigated. For tight containers, we use PE film for packing or accommodate special customer requests.
Exhibitions We Attended
We have attended various exhibitions including Canton Fair.
